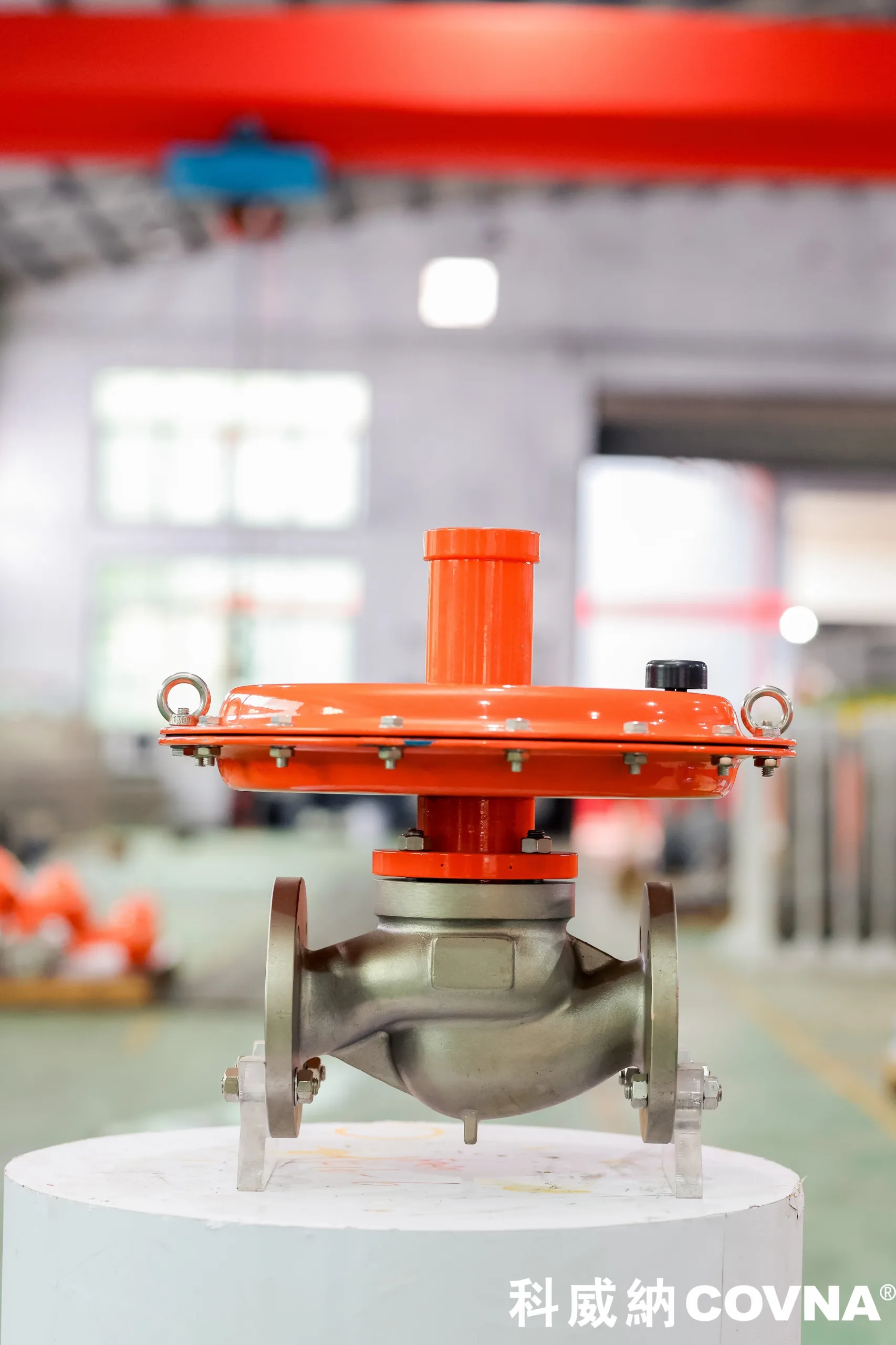

N2 BLANKETING VALVE
The natural gas pressure regulator is a self-operated pressure reducing regulator designed to provide the right shutoff and accurate regulation on natural gas plants, it can be control downstream pressure, upstream pressure, or differential pressure.
| Size: | 1/2'' ~ 4'' |
| ANSI Class: | 150 ~ 300LB |
| Body Materials: | A216 WCB, A216WC6, A352 LCB, A351 CF8, A351 CF8M, A351 CF3M, A351 CF3 |
| Temperature Range: | -50 ~ +250°C |
Description
The N2 blanketing valve is designed to maintain constant gas pressure in the vapor space of storage tanks. lt is capable of regulating the desired pressure within specific limits when liquid runs out or when a vacuum occurs due to temperature decrease. Additionally, it serves to prevent air and humidity from entering the storage vessel, thereby preserving products and safeguarding against fire. The controller also plays a critical role in protecting the tank from explosions by restricting sparks and preventing fluid outflow through evaporation.
Technical parameters and performances
Size: DN20 ~ DN300
Pressure Rating: PN1.6 ~ PN6.4MPa, 150 ~ 300LB
Flange Standard: JB/T79.1-94. 79.2-94, ANSI B16.
Body Material: Cast iron, cast steel, stainless steel
Plug type: Single seated, double-seat, Cage guided
Stem material: Stainless steel
Pressure balancing: Stainless steel bellows
Flow characteristic: Quick open
Working temperature: ≤ 80°C
| Size: | 1/2'' ~ 4'' |
| ANSI Class: | 150 ~ 300LB |
| Body Materials: | A216 WCB, A216WC6, A352 LCB, A351 CF8, A351 CF8M, A351 CF3M, A351 CF3 |
| Temperature Range: | -50 ~ +250°C |
